How to Use SEOmatic with Elementor Pro and ACF

Written By Minh

Last updated About 5 hours ago

SEOmatic lets you generate and publish hundreds of pages from a single Elementor template. You design the layout once, use ACF fields for dynamic content, and SEOmatic fills each page with unique content at scale.

Minimum Requirements

Elementor Pro installed and activated (Dynamic Tags require Pro)
ACF 5+ (Advanced Custom Fields) by WP Engine installed and activated
ACF Field Key plugin by SEOmatic
A WordPress connection configured in SEOmatic

Step 1: Create a Custom Post Type

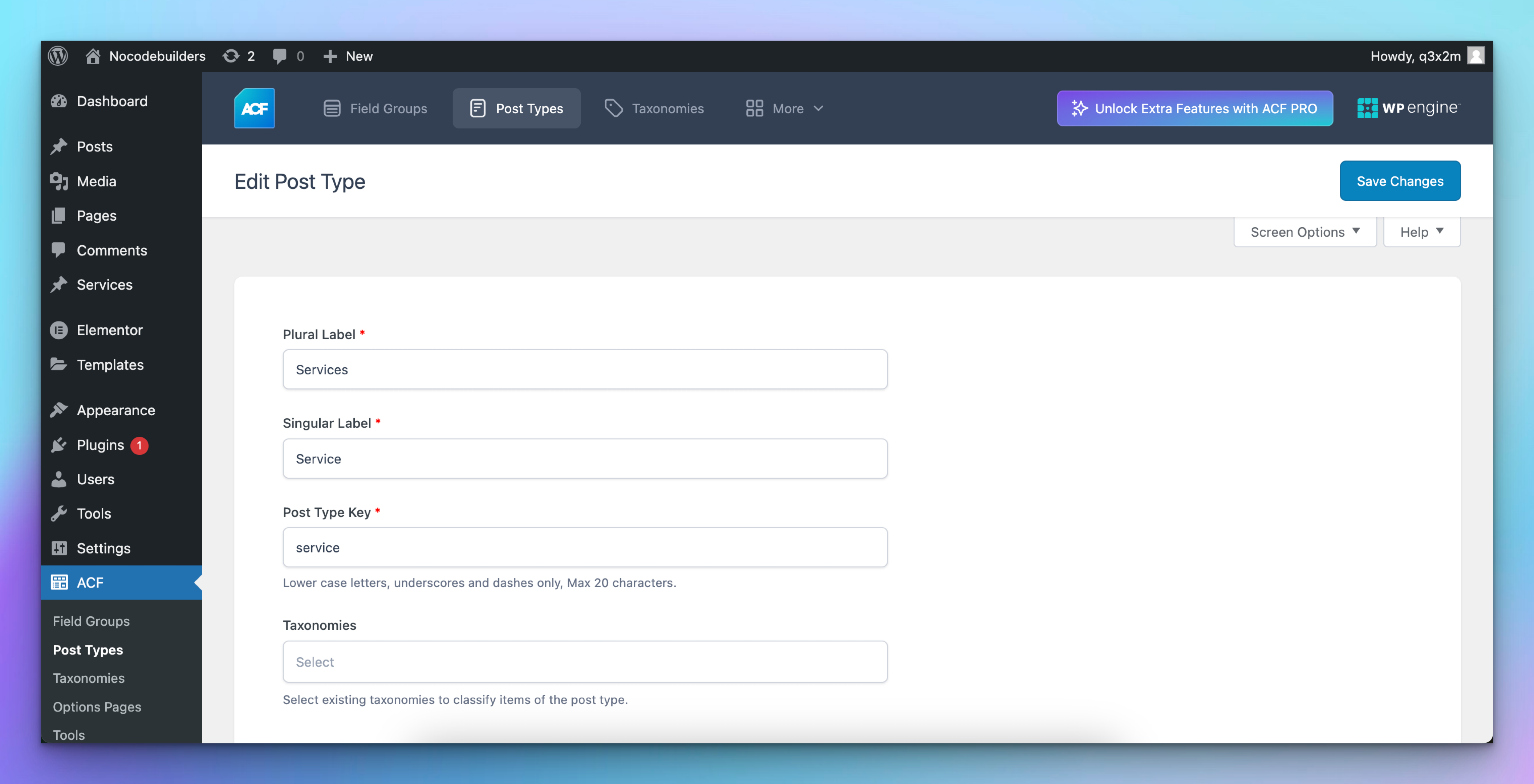

In your WordPress admin, go to ACF > Post Types and create a new post type (e.g. "Services"). This will store all the pages created from your template.

Leave the Advanced Settings at their default values.

Step 2: Create Your ACF Fields

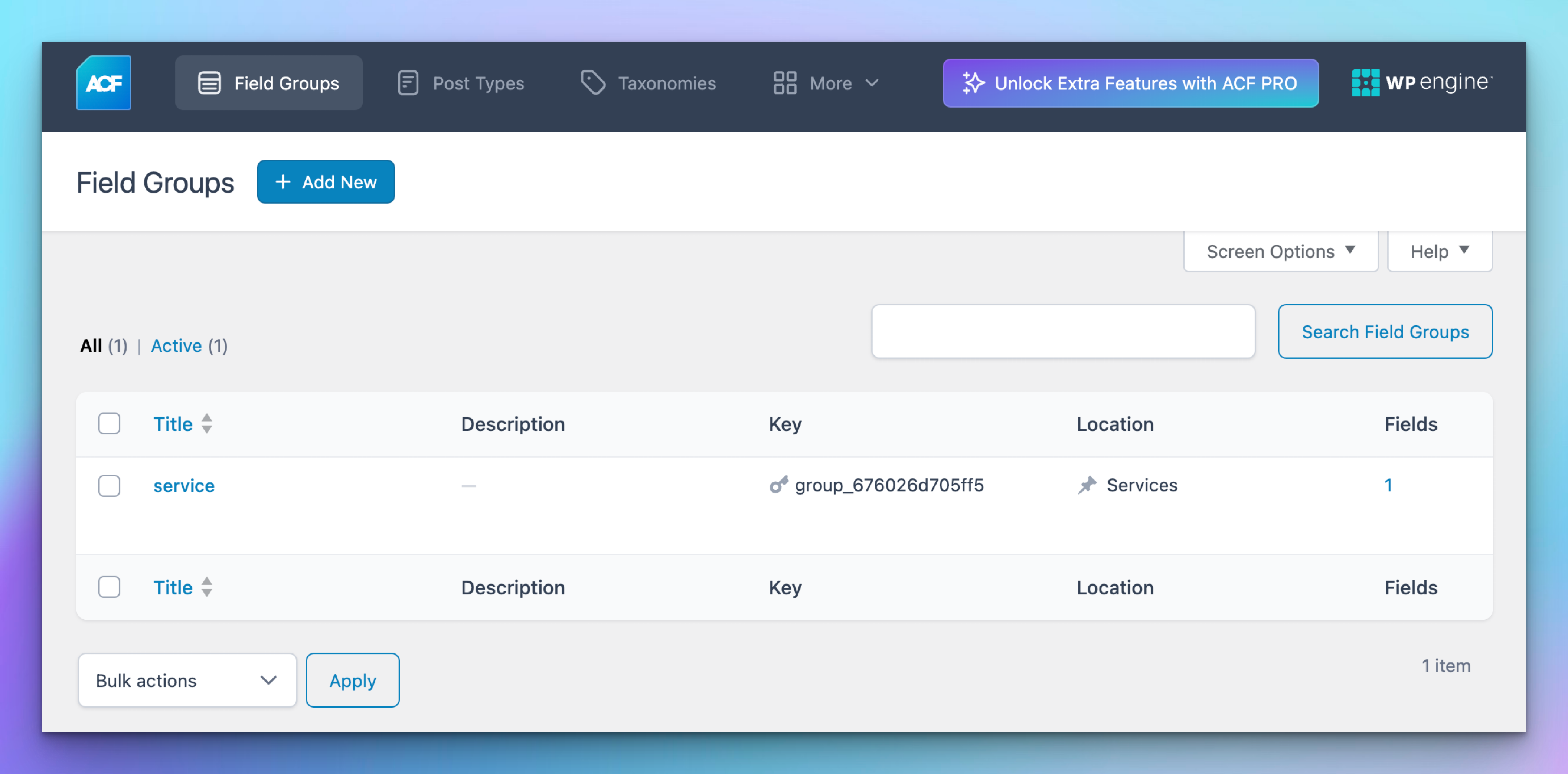

Go to ACF > Field Groups and create a new group (e.g. "Service Fields"). Add a field for each dynamic element in your template.

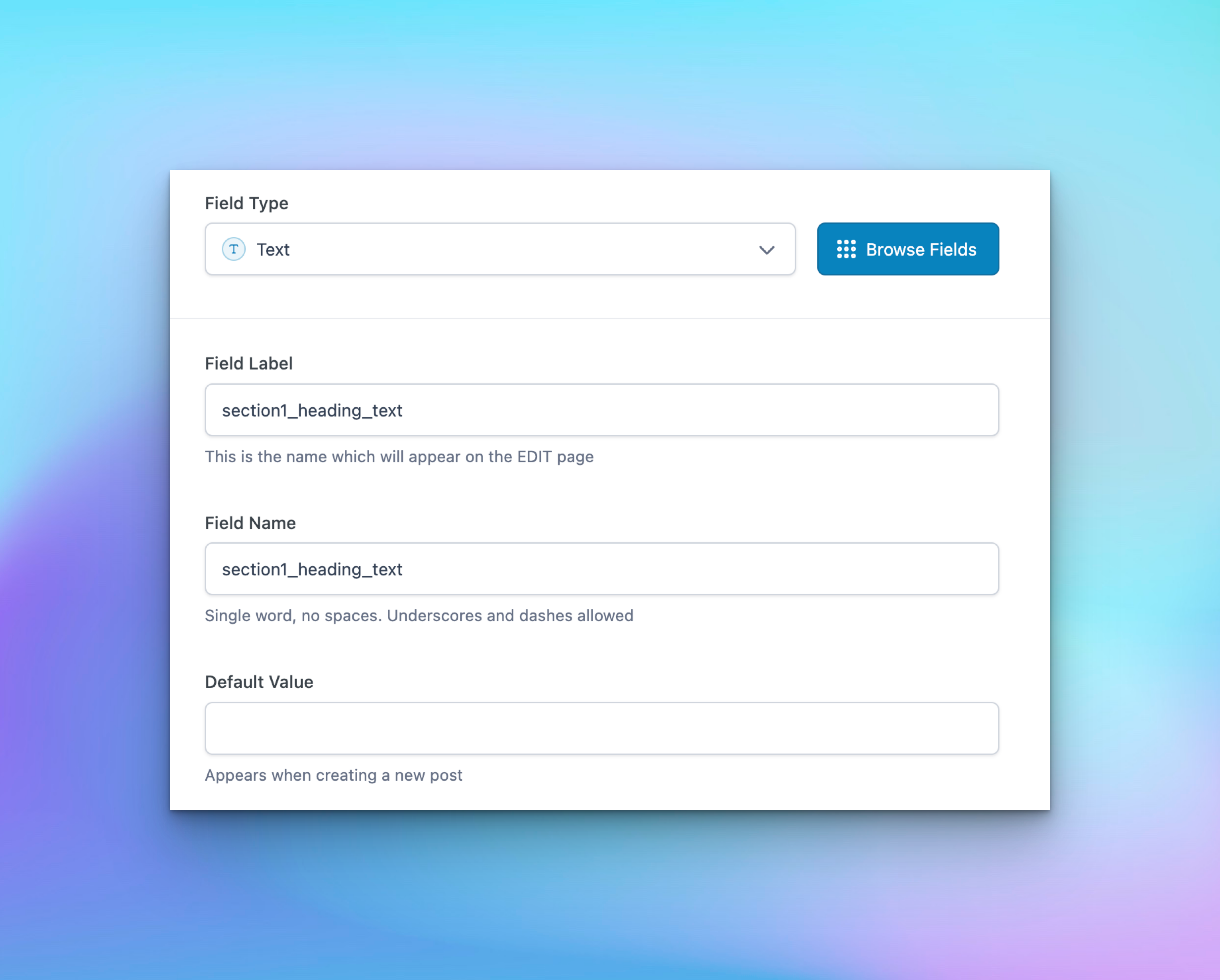

Make sure the Field Label and Field Name are exactly the same.

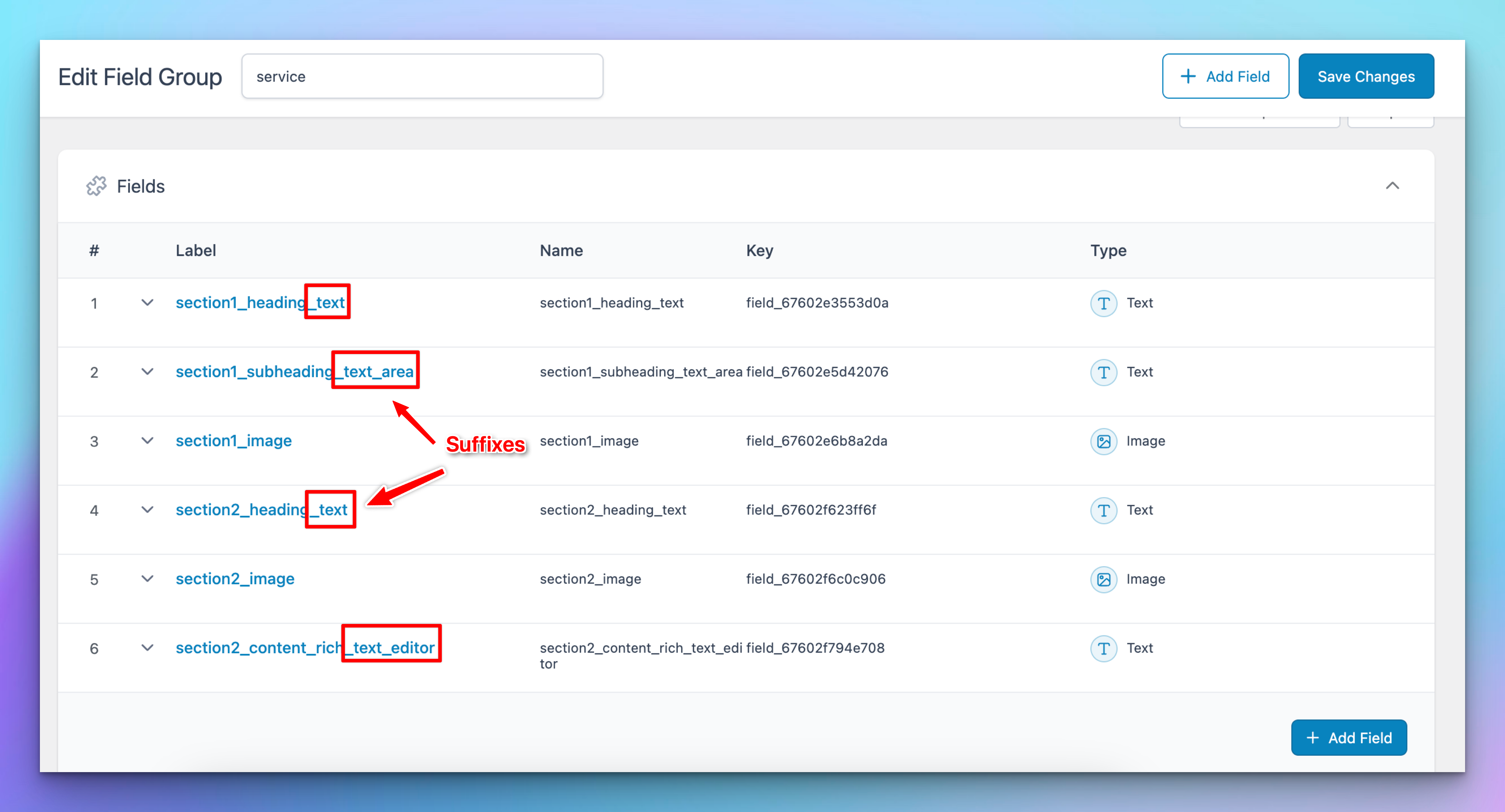

Naming convention: Use sectionX_fieldtype_suffix with underscores, not hyphens. For Text fields, the suffix controls the input type in SEOmatic:

Suffix	Input type in SEOmatic
_text	Single-line text
_text_area	Multi-line text
_rich_text_editor	Rich text editor
(no suffix)	Rich text editor (default)

Supported field types: All types under the Basic and Content categories (up to oEmbed). Repeater fields and Flexible Content are not supported by Elementor's native Dynamic Tags.

For Image fields, set the return format to Image ID (not Image URL) - both Elementor and SEOmatic need this format to display images correctly.

Step 3: Configure the Field Group Settings

Still in your field group, scroll down and configure:

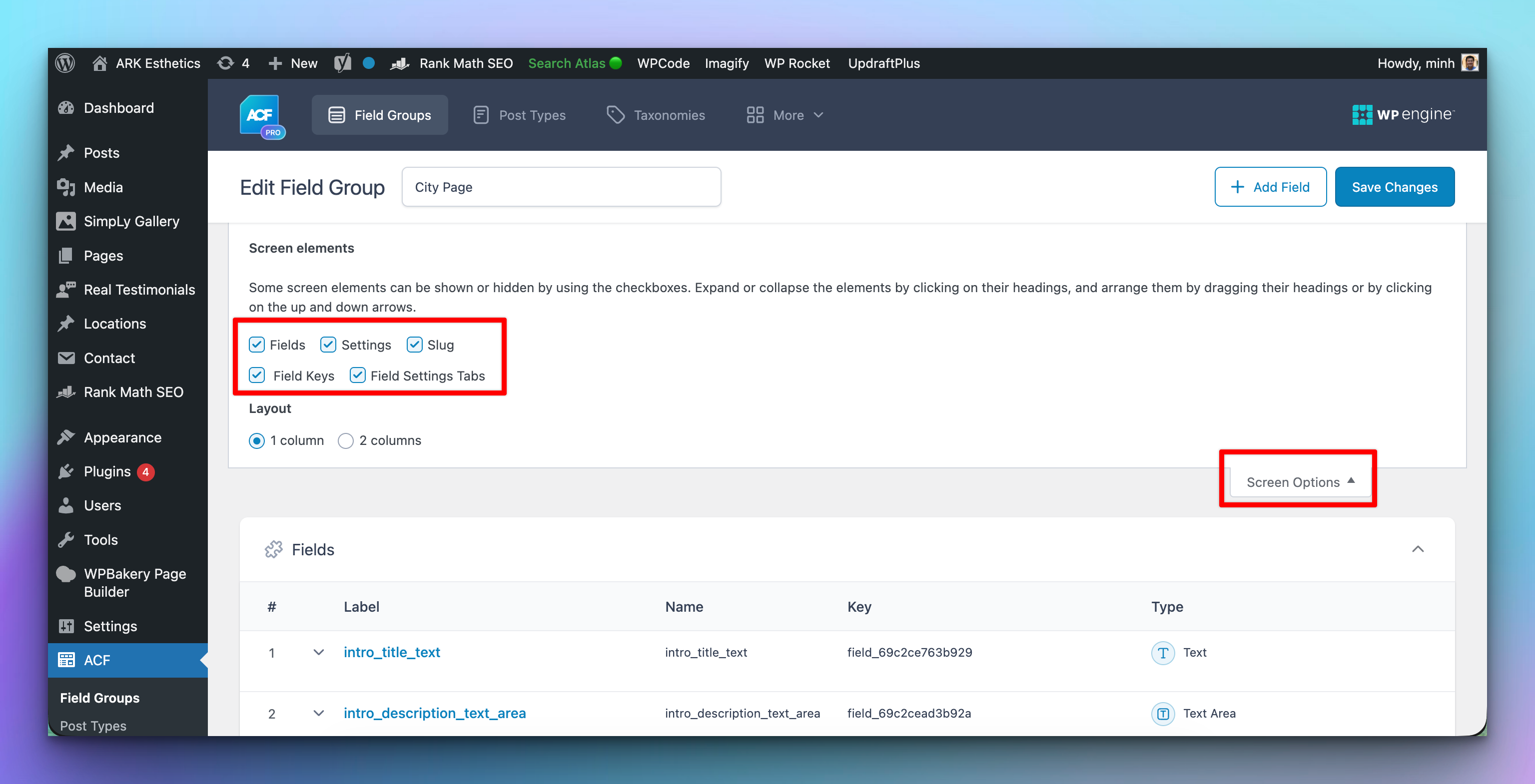

Fields Keys - Click Screen Options and enable Field Keys

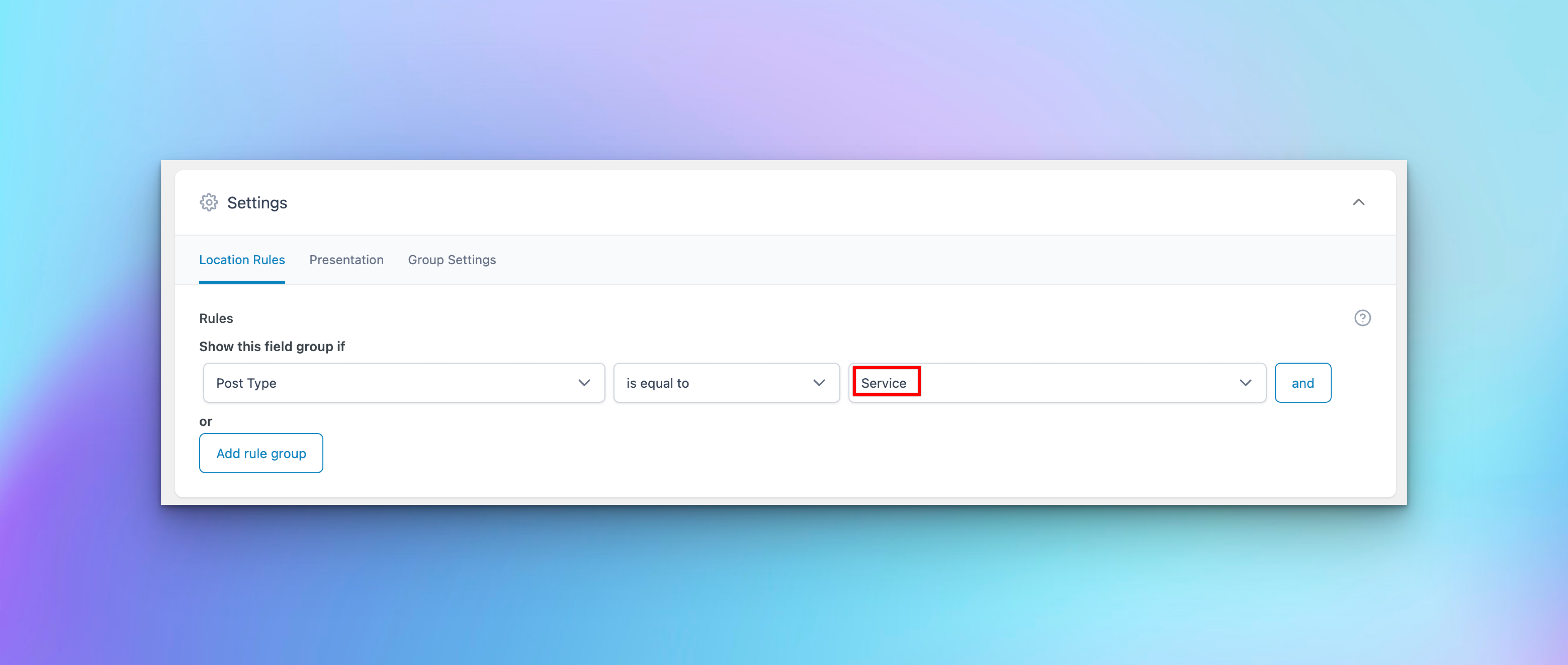

Location Rules - Set the post type to the one you just created (e.g. "Service").

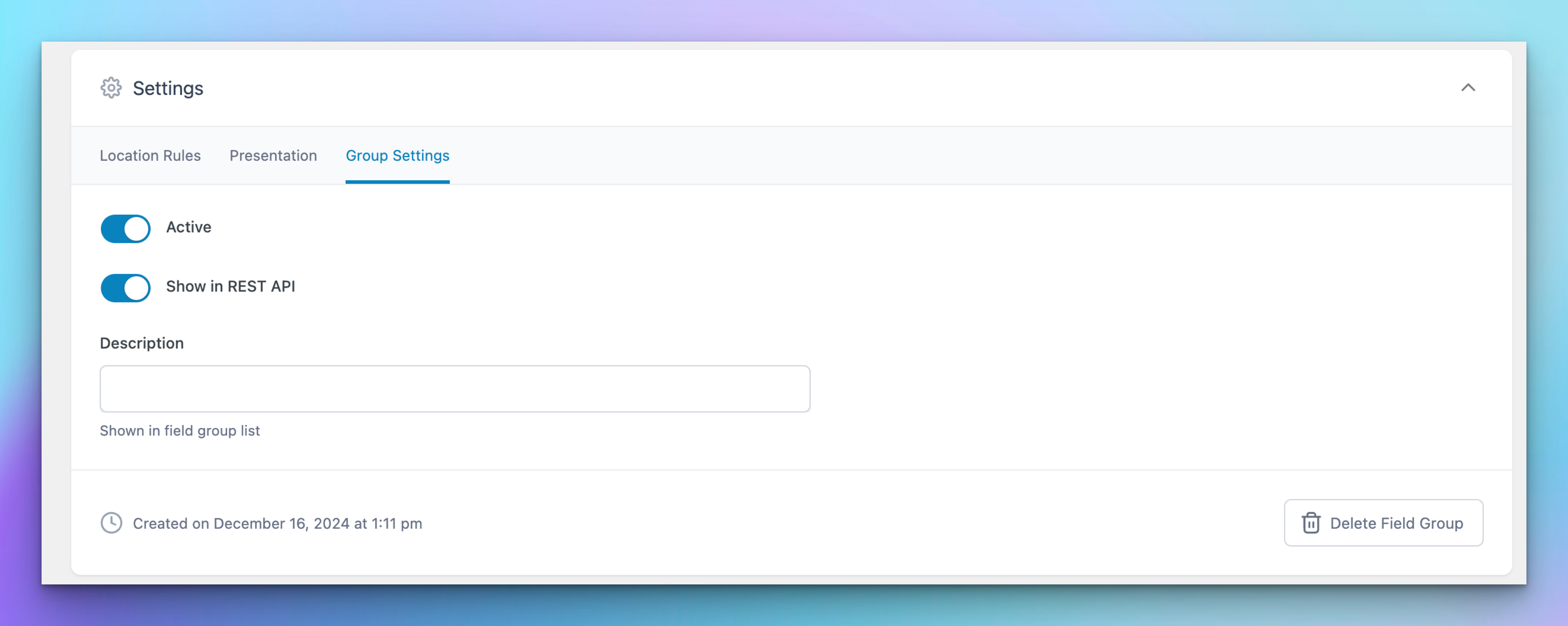

Show in REST API - Turn this on under Group Settings. SEOmatic needs this to detect your fields.

Step 4: Build Your Elementor Template

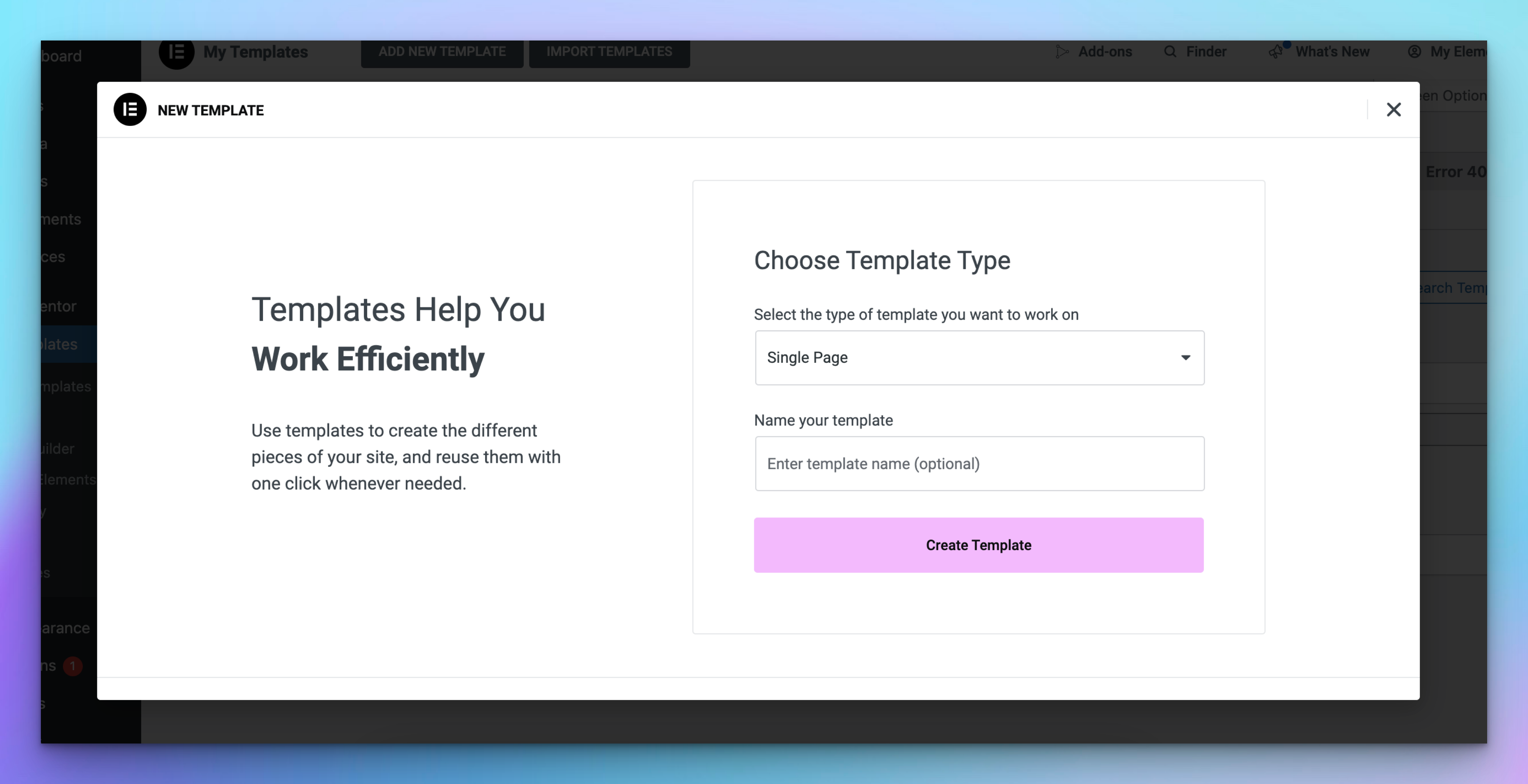

Go to Templates > Add New Template and select Single Page.

Before you start designing, go to Page Settings > Preview Settings and select a post from your custom type. This lets you see real ACF data while building the template instead of placeholder text.

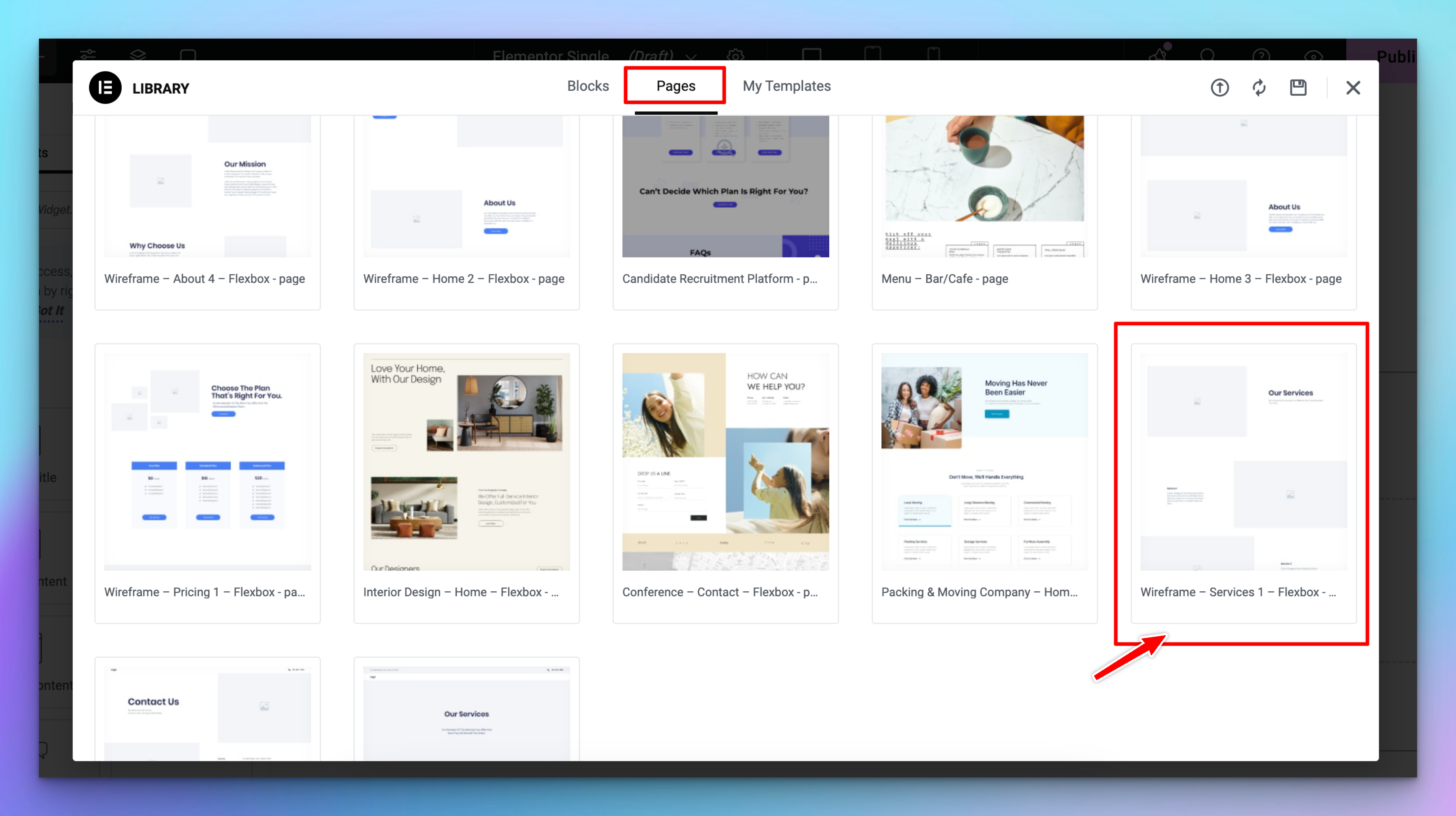

Design your layout, then bind each widget to its ACF field:

Click on a widget (e.g. a Heading).

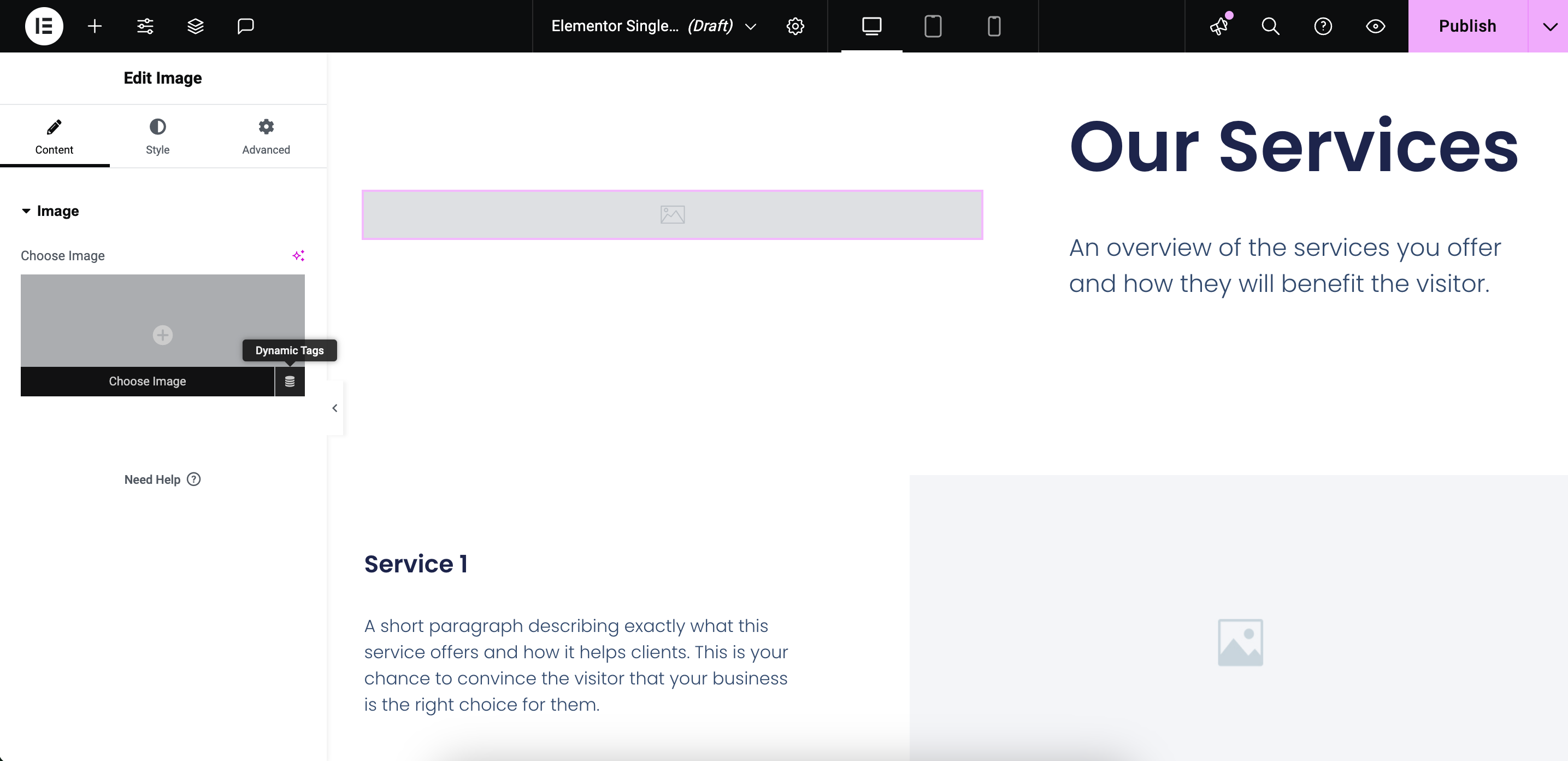

Click the Dynamic Tags icon (stacked discs).

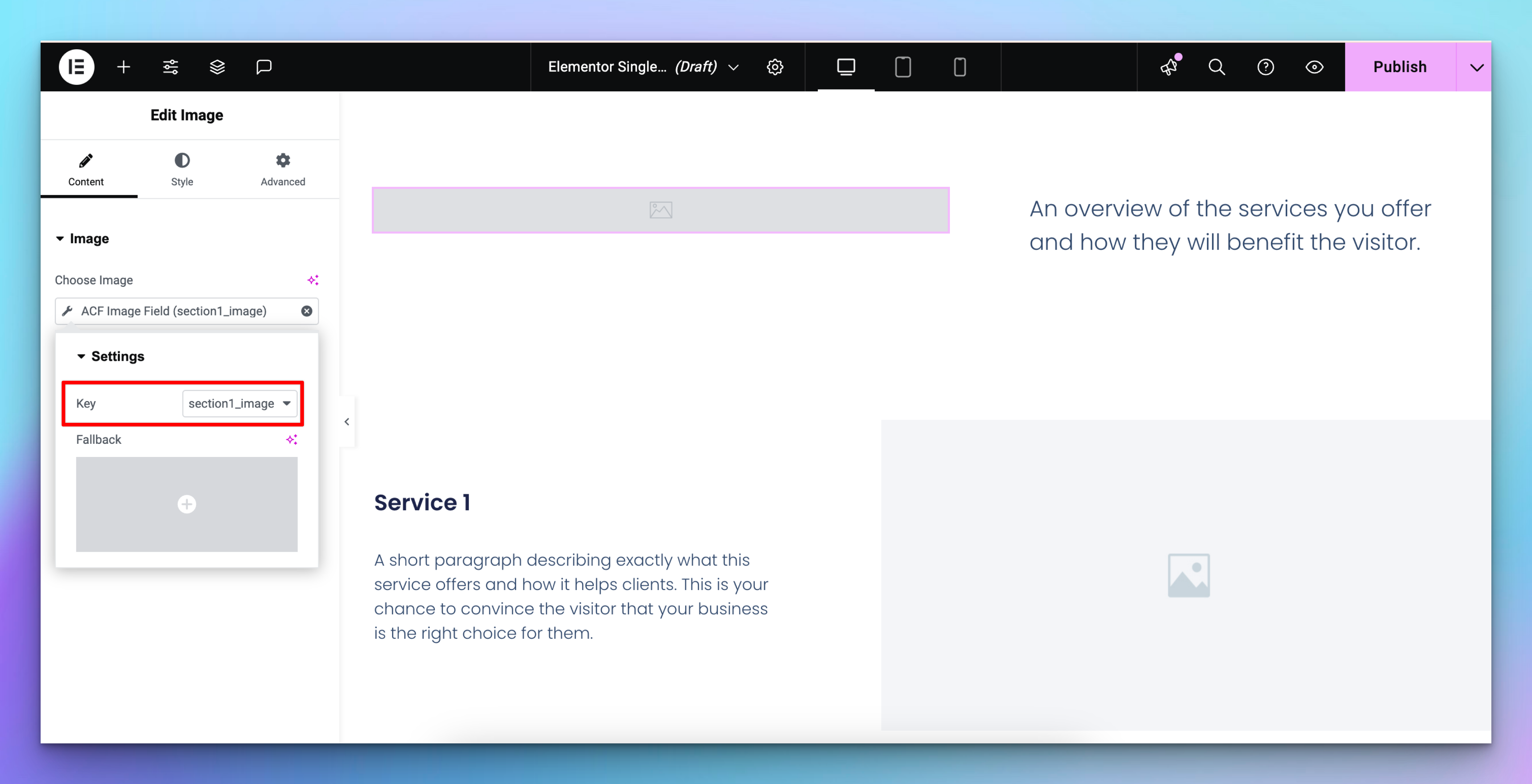

Select ACF Field and choose the matching field.
Optionally, set a fallback value - this is displayed if the ACF field is empty.

Repeat for all elements in your template.

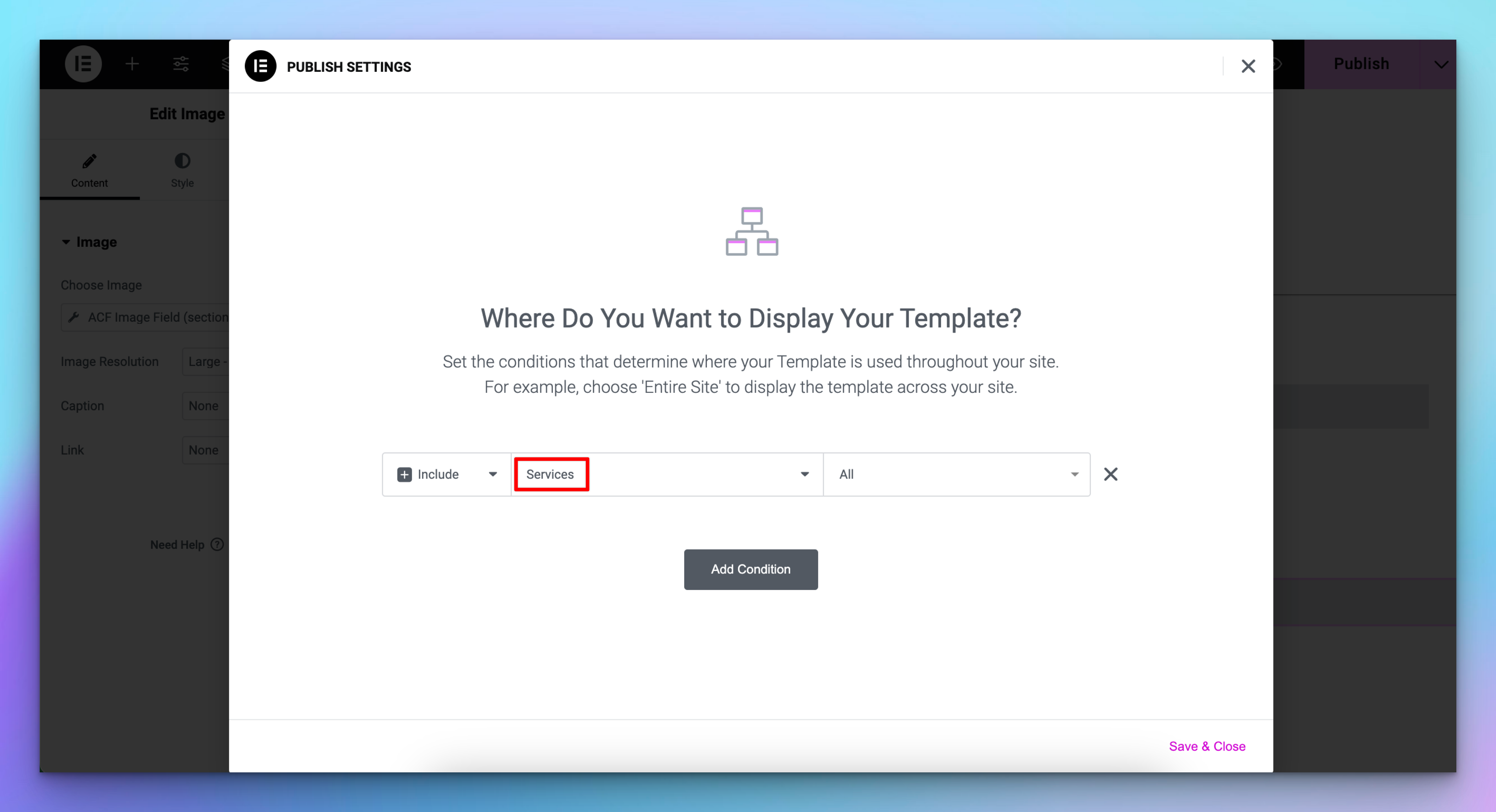

When you publish the template, set the display condition to your custom post type (e.g. "Service"). This tells WordPress to use this template for every page of that type.

Step 5: Set Up Your SEOmatic Project

Your WordPress site is now set up. Head over to SEOmatic, create a new project, and select the custom post type you just created (e.g. "Service"). Your ACF fields will be automatically synced.

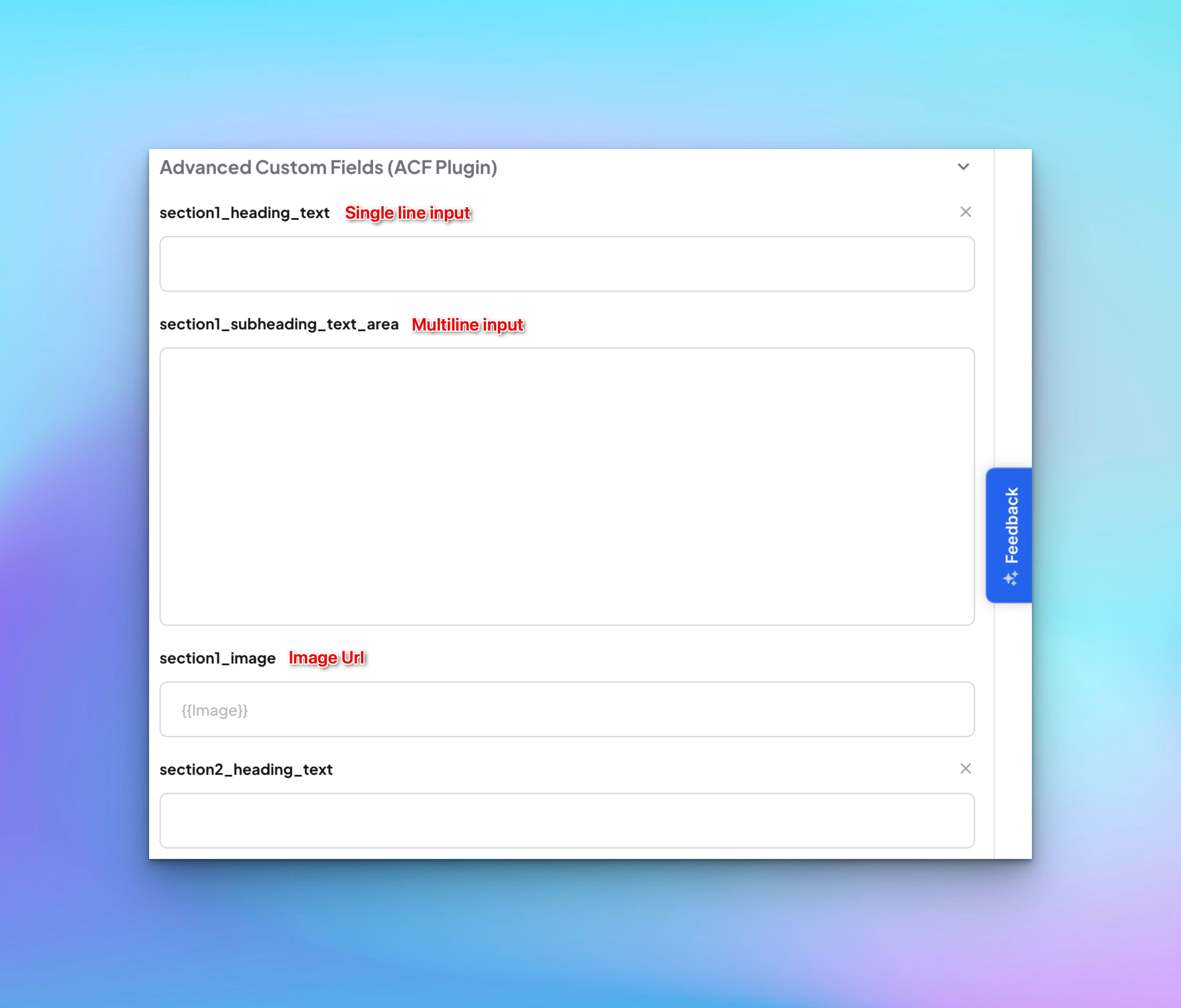

Notice how different input types are generated based on the suffixes used for the Text Fields.

Troubleshooting

Problem	Solution
ACF fields not appearing in SEOmatic	Make sure "Show in REST API" is enabled in your ACF field group settings, and the field group is assigned to the correct post type.
Wrong input type in SEOmatic	Check your field naming convention. Text fields without a suffix default to Rich Text Editor. Use _text for single-line or _text_area for multi-line.
Template not applying to published pages	Make sure the Elementor template display condition is set to your custom post type, not "All Pages" or "All Posts."
Images not displaying	ACF Image fields must be set to return Image ID, not Image URL. SEOmatic uploads images to your WordPress Media Library and sends the attachment ID automatically.
Blank sections on the published page	If an ACF field is empty, Elementor shows nothing for that widget. Make sure all fields have content in SEOmatic before publishing. You can also set fallback values in Elementor's Dynamic Tag settings as a safety net.
